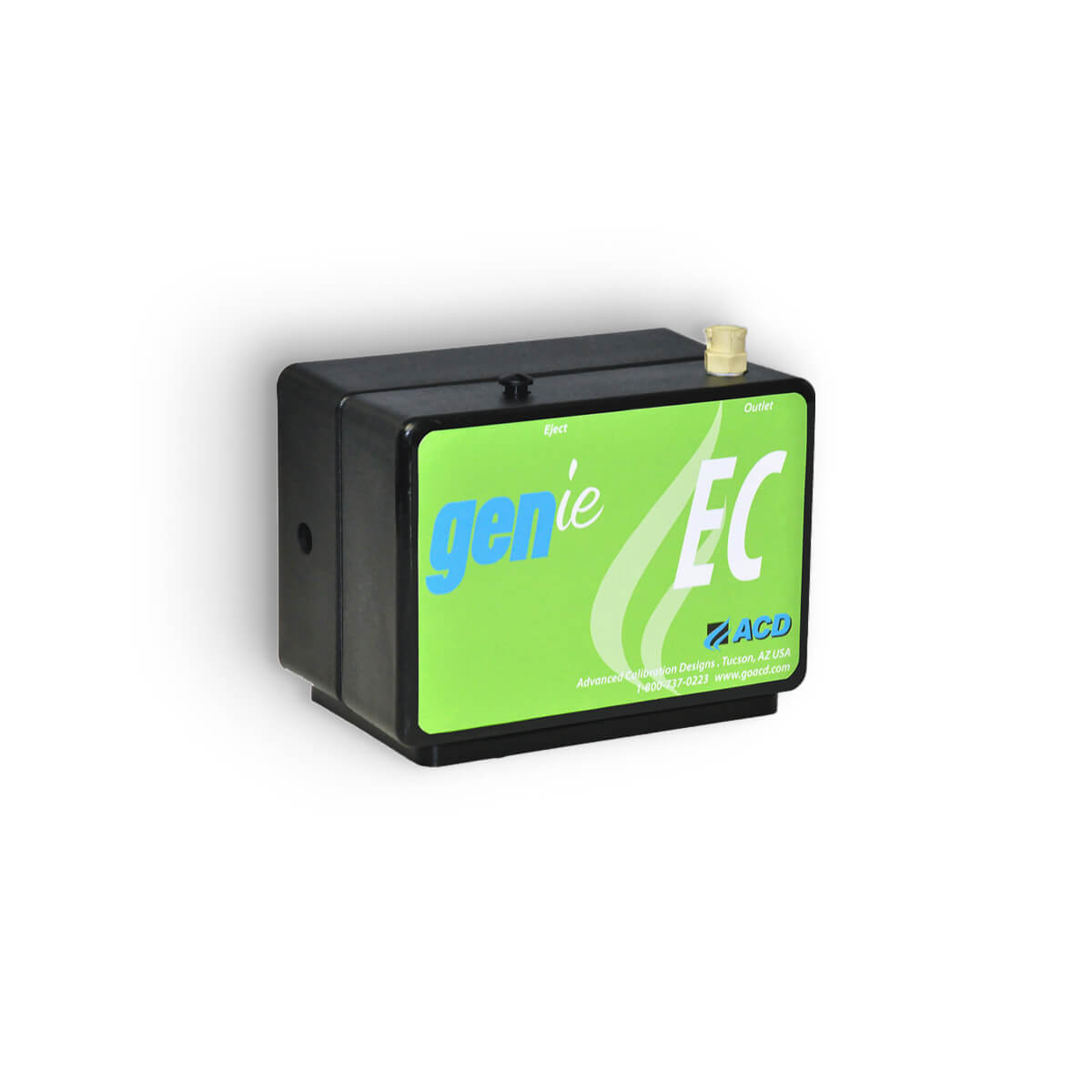

GENie EC Calibration Gas Instrument

The GENie EC Calibration Gas Instrument is a portable, microprocessor-controlled calibration gas system designed for accuracy, flexibility, and ease of use. Featuring interchangeable electrochemical generating sources, it delivers expandable concentrations for gases including Hydrogen, Chlorine Dioxide, Hydrogen Sulfide, Hydrogen Cyanide, and Nitrogen Dioxide.

Ideal for both demand flow and diffusion applications, the GENie EC eliminates the need for storing and transporting hazardous disposable cylinders. With simple NIST-traceable operation and integrated feedback control, it offers a safe, cost-effective, and reliable solution for calibrating a wide range of gas detection instruments. Compact and lightweight at just 2 lb, it operates in environments from 0°C to 50°C and provides consistent accuracy and repeatability.

Enquire now
Features and Benefits:
  • Calibration Gas Instrument
  • Hydrogen (H) 5.0 to 500.0 PPM
  • Chlorine Dioxide (ClO2) .5 to 5 PPM
  • Hydrogen (H2) .5 to 500 PPM
  • Hydrogen Sulide (H2S) .05 to 50 PPM
  • Hydrogen Cyanide (HCN) .05 to 50 PPM
  • Air Low rate (with internal pump) 0.2 to 1 LPM
  • Sample draw rate (with pump dis-abled) 0.1 to 5 LPM
  • Source life 100 hours / cell
  • Warm-up time (to 90%) Approx. 2 minutes
  • L x W x H 5”W x 3.88”H x 3.13”D
  • Weight 2 lb. (907 g)
  • Operating temperature 0° C to 50° C
  • Relative humidity (intermittent use) 0 – 100%
  • Accuracy ±10%
  • Repeatability ±5%
  • Battery power 4 Alkaline “AA”
  • Battery life 10 hours (at .5 LPM low rate)
